PCB Assembly Equipment & Capabilities

To deliver the quality and reliability our customers expect, Cleveland Circuits operates with a comprehensive range of state-of-the-art PCB assembly equipment. Our modern production line combines speed, precision, and rigorous inspection to ensure every circuit board is built to perform. Whether for rapid PCB prototypes or volume manufacturing, our equipment allows us to achieve outstanding results with every project.

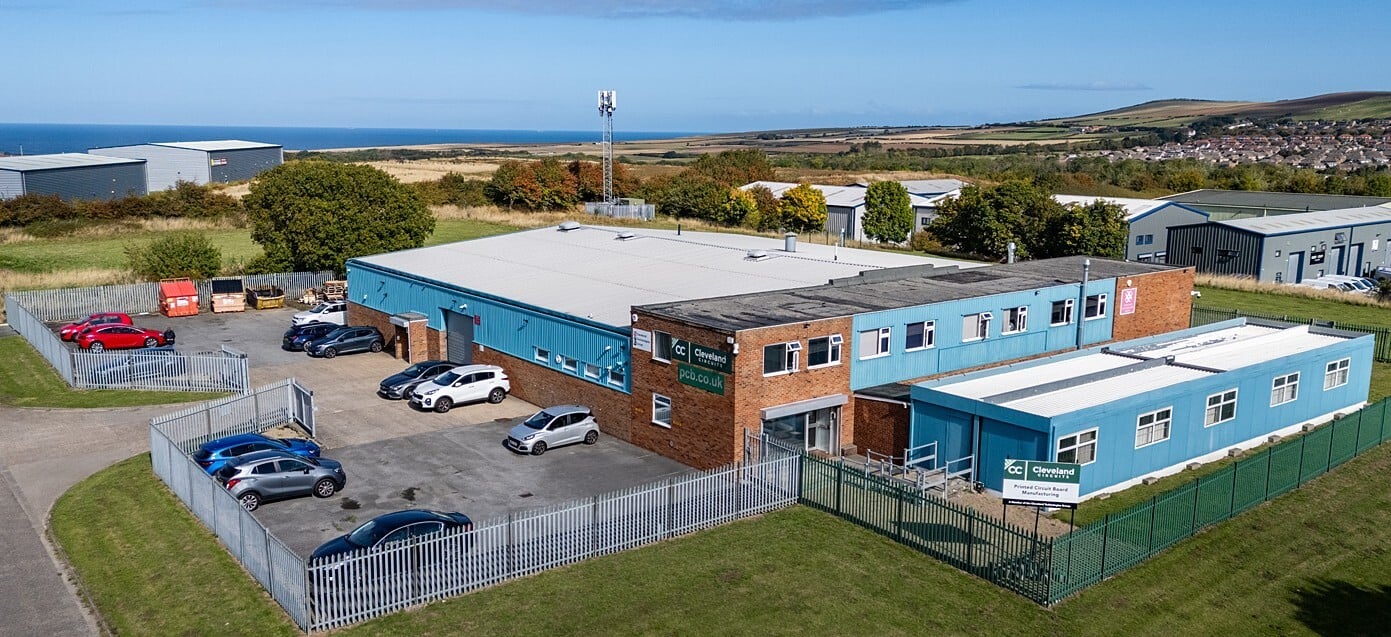

Arrange Your PCB Factory Tour

SMT

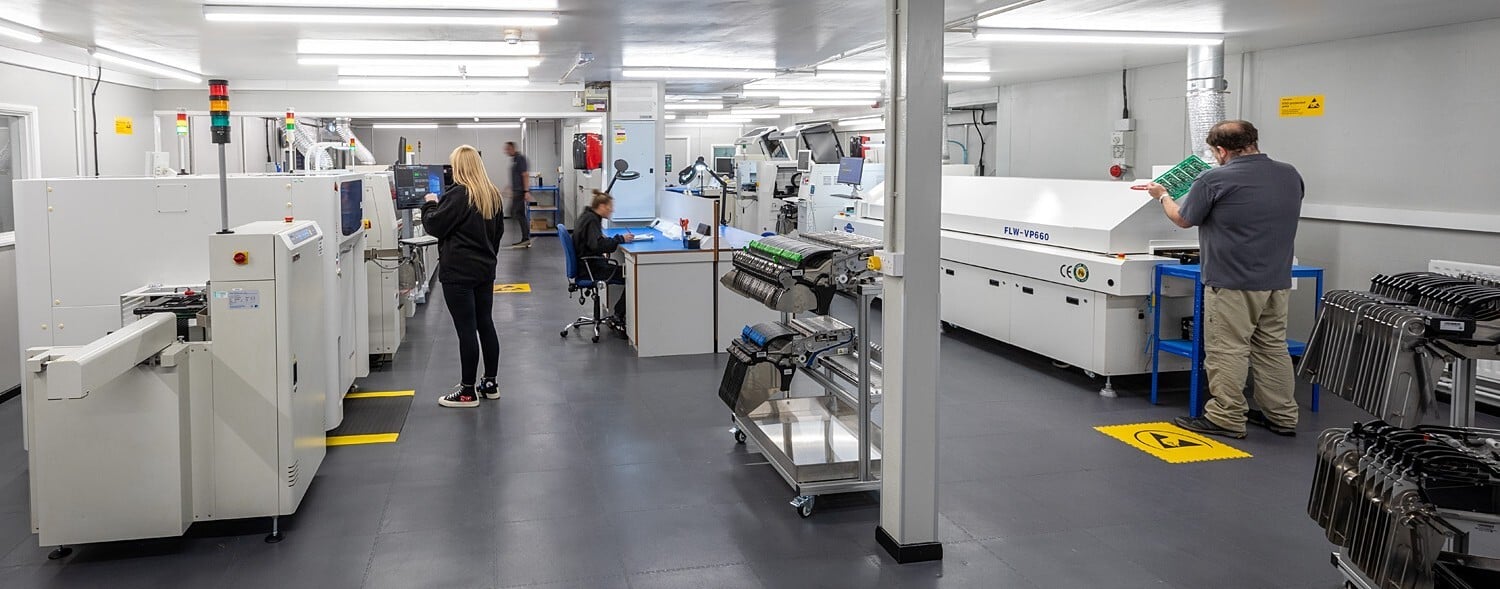

Surface Mount Technology (SMT) Equipment

At Cleveland Circuits, our advanced Surface Mount Technology (SMT) equipment forms the backbone of our high-quality PCB assembly service. We operate two fully equipped SMT production lines, each featuring Hanwha SM482PLUS flexible pick-and-place machines capable of placing up to 33,000 components per hour for fast, accurate, and reliable assembly. Every line also includes a FLV-VP660 reflow oven for precise temperature profiling and a dedicated inspection bench to ensure consistent quality and defect-free results.

Mascot Axial and Radial placement machines-1

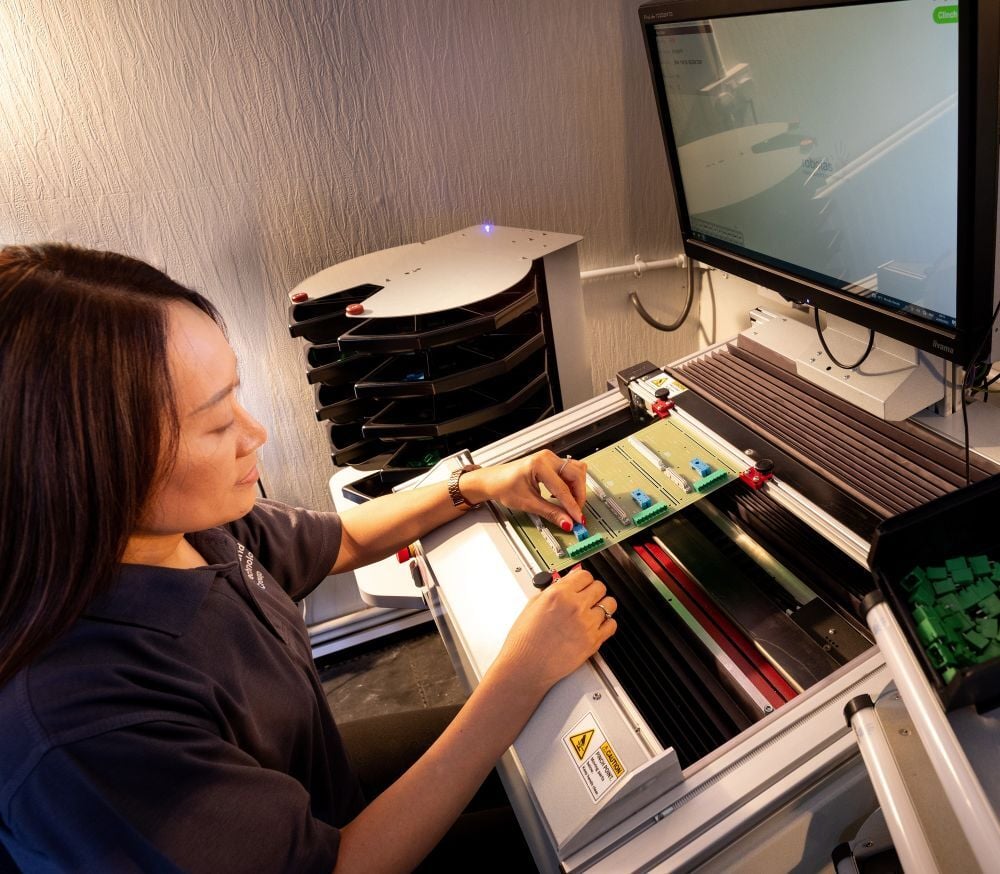

Axial and Radial Placement Machines

Our through-hole assembly process is supported by a reliable Mascot axial and radial placement machines, enabling fast, accurate insertion of a wide range of leaded components with consistent forming, precise placement, and excellent repeatability

Lead-Free Wave Soldering

Our lead-free wave soldering system delivers high quality, reliable solder joints for through-hole PCB assembly, using precise thermal profiling and RoHS compliant materials to ensure consistent, defect-free results across PCB prototypes and full production volumes.

Our Skilled and Experienced Assembly Team

At Cleveland Circuits, our greatest asset is our highly experienced workforce, bringing decades of expertise to every PCB assembly and electronics assembly project. From precision soldering professionals to technicians trained to industry recognised standards, including IPC-A-610 and IPC-J-STD-001, our team combines technical skill, quality driven workmanship, and meticulous attention to detail to ensure consistent, reliable results for every PCB assembly we deliver.
